Water pooling in the same corner of your yard after every storm is trying to tell you something. A topographic survey is how you find out what. When drainage keeps failing in the same spot, the cause usually hides in elevation changes too small for the eye to catch. A topographic survey measures those changes precisely, mapping the hills and dips that decide where water goes. For a property owner staring at a recurring puddle, that map turns a frustrating mystery into a solvable problem.

Tracing the Elevation Path Behind Recurring Ponding

Ponding happens where water slows down, collects, or gets stuck, and elevation controls all three. A topographic survey records spot elevations and contours across the property, revealing the exact shape of the ground. That shape shows why water behaves the way it does.

The survey often uncovers surprises. A yard that looks flat might slope gently toward the house instead of away from it. A low spot that seems like the problem might actually be a place where water backs up because it can’t drain past a slight rise beyond it. The elevations expose these patterns clearly.

Reading that path is the first real step toward a fix. Once an owner and an engineer can see where water slows and pools, they can figure out how to keep it moving, whether by regrading, adding a drain, or building a swale.

Mapping the Features That Redirect Surface Flow

Water rarely moves across bare ground. It bumps into walls, curbs, driveways and buildings that steer it in new directions, and the survey maps all of them. Each feature changes the flow, sometimes helpfully and sometimes not.

A driveway can act like a channel, funneling runoff toward a spot that was never meant to handle it. A retaining wall can dam water on its uphill side. A berm the previous owner built might redirect flow straight toward the foundation. The survey locates these features and ties them to the elevations, showing how each one affects the water.

Neighboring improvements count too. A wall or a raised patio next door can push water onto your land, and mapping the shared edge reveals it. Understanding which features control the flow tells the design team what to work with and what to work around.

Extending Measurements Beyond the Visible Wet Area

The puddle is the symptom, not the source. A common mistake is surveying only the wet spot, when the real cause often sits uphill or downstream. Good drainage work follows the water, which means the survey limits have to stretch beyond the obvious problem area.

Uphill sources matter because that’s where the water comes from. If runoff pours in from a higher property or a distant slope, the survey needs to reach far enough to catch it. Downstream outlets matter because that’s where the water has to go. If the receiving ditch or street is the bottleneck, the survey has to include it.

Adjoining grades and the receiving street often hold the answer. A drainage problem in a backyard might trace back to a clogged street inlet a hundred feet away. Extending the survey to those points turns a partial picture into a complete one.

Converting Field Elevations Into Usable Design Information

Raw elevations don’t fix anything on their own. An engineer turns them into a surface model, which is a digital version of the ground that shows every slope and low point. From that model comes the actual design.

The model lets the engineer test solutions. They can evaluate how steep each slope runs, trace the routes water follows, and figure out where an inlet or a swale would do the most good. They can check whether a proposed grade change would actually drain the trouble spot or just move it somewhere else.

That analysis produces a plan an owner can build. Instead of guessing where to dig, the engineer designs collection points, drainage routes and grading corrections based on measured ground. The survey is what makes the design reliable rather than hopeful.

Recognizing What the Topographic Map Cannot Diagnose Alone

A topographic survey measures the surface, and that has limits worth knowing. It shows where water goes based on the shape of the land, but it can’t see everything that affects drainage. Some problems live below the ground or inside systems the survey can’t inspect.

The survey won’t tell you whether an underground pipe is cracked or clogged. It can’t measure how fast the soil absorbs water, or how groundwater moves beneath the surface. It doesn’t determine who’s legally responsible when runoff crosses a property line, and it doesn’t design the final fix by itself.

Those questions go to other specialists. A drainage engineer interprets the survey and designs the remedy. A plumber or a camera inspection checks a suspect pipe. Knowing where the survey stops keeps an owner from expecting it to answer questions it was never meant to answer.

Frequently Asked Questions

Should drainage elevations be collected immediately after heavy rainfall?

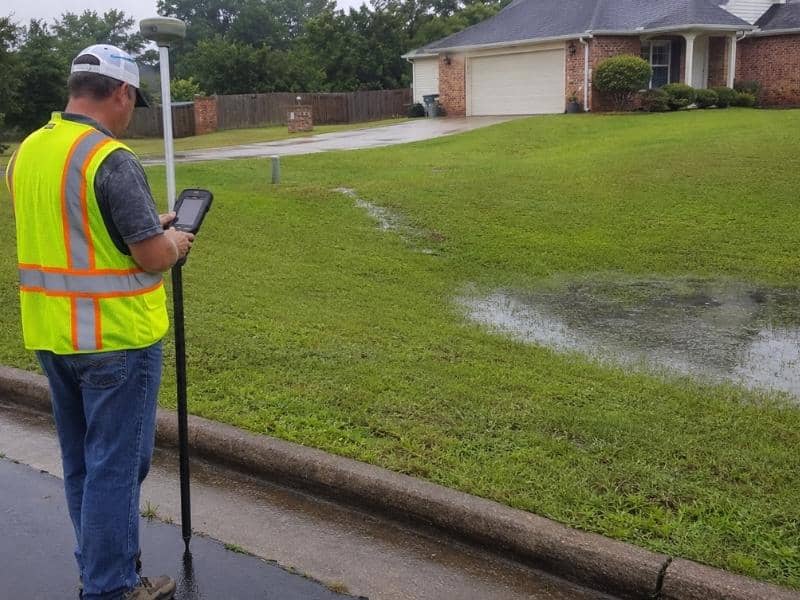

Timing can help. Surveying while water is still standing or freshly drained lets the crew mark exactly where it collected and how far it spread. Those observations add useful context to the elevations. The ground shape itself doesn’t change with the weather, but seeing the water in action confirms what the contours suggest.

How far outside the ponding area should terrain measurements extend?

Far enough to capture the water’s full path, which usually means reaching the uphill sources and the downstream outlet. A puddle in one corner might be caused by runoff entering from well beyond the property or by a blocked outlet some distance away. The engineer setting the scope decides the limits based on how water moves through the area.

Can a topo survey reveal whether runoff originates on an adjacent parcel?

Yes, when the survey extends to the shared boundary and beyond. By mapping the grades along the property line, the survey can show water entering from a neighbor’s higher ground. This is a common finding, and documenting it with measured elevations gives the owner solid information rather than a suspicion.
